| Parametric Form Vase Modelling In Blender Tutorial |
| Red Blue face orientation view look in the upper right corner for two intersecting circles with a drop down arrow button next to it, variable list, look under geometry for "Face Orientation", just be in object mode its a shorter list |
| Operator Search Menu is F3 (Multimedia keys overlap) |
| CTRL+Space to enter fullscreen mode |
| jump from object to object while in edit mode by "hover" + AltQ |
| The selection can also be inverted by Ctrl - I |
| Press "C" for circular select/deselect tool. Normal click to select, Shift-Click to unselect. Or Middle click. |
| With Cube selected in Object mode: Press CTRL + 2 to subdivide. The number you press corresponds to the level of subdivide, CTRL + 3 is usually good |
| In edit mode with one or more faces selected, Press "I", may need to be zoomed out, may need to double press "I" |
| Create new viewports = drag from upper left corner. Close viewports = drag from bottom left corner. |
| Knife Mode, K, C, EnterS |
| ShiftZ for see thru mode, AltZ for enhanced see through mode. |
| Ctrl I - inverse selection |
| Shift + S for snap menu |
| Quads to tris(triangles) - Face > Quads to tris -or- tris to quads |
| Loop Tools Add-On |
| Shift CTRL B for Bevel, roll scrollwheel to increase folds. |
| Shift Right Click, moves curser to mouse. |
| Select Vertex, than from Menu: Mesh > Snap > Curser to selected |
| Zero on Keypad, Camera View |

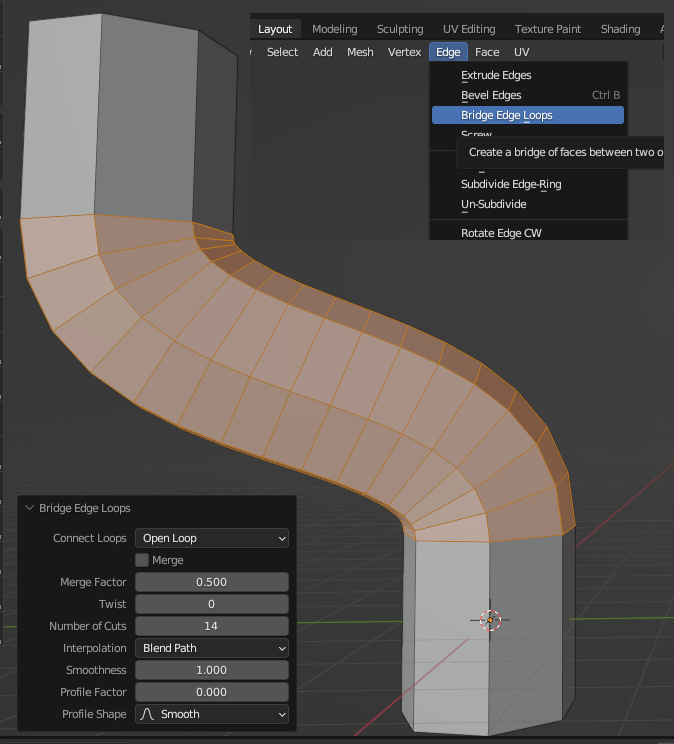

| Bridge Edge Loops |

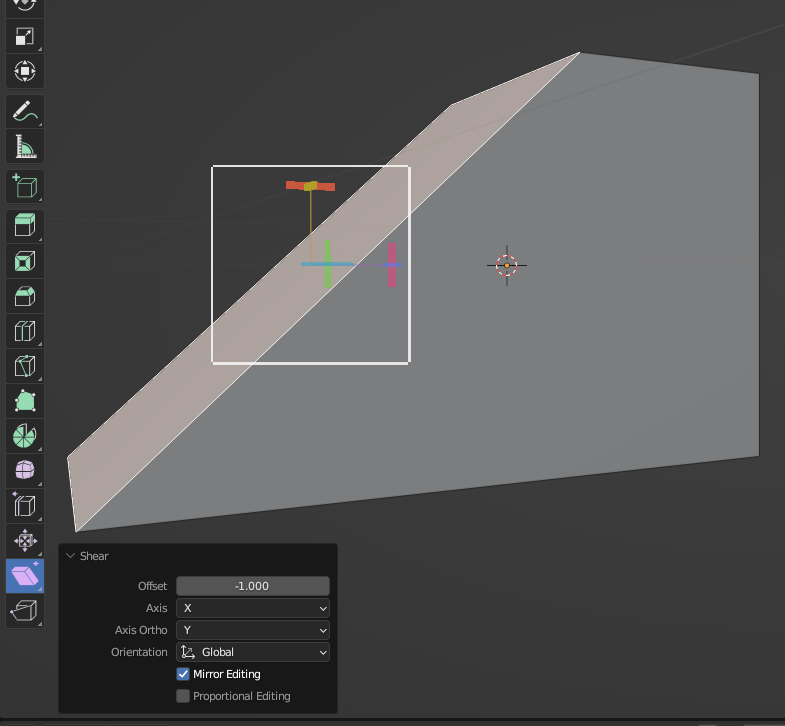

| how to use shear |

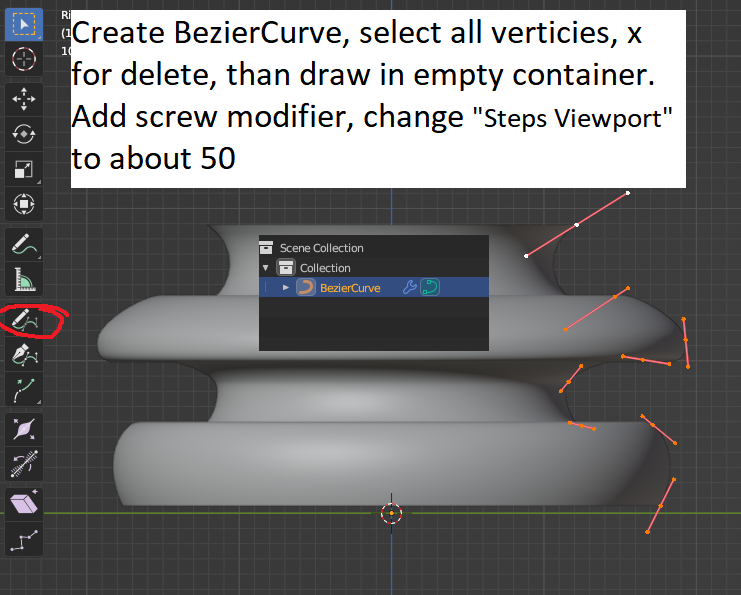

| Extrude a clay pot |
| To orient the viewport to a non X, Y, or Z view, highlight the plane and press 'shift +num7' this enables dragging up-down-left-fight along the plane |
| To Sphere - "Shift+ALt+S" converts selection to spehere (or circle) |
| Last Operation window - Is the tool specific menu that appears in the lower left to adjust the options of each individual operators |

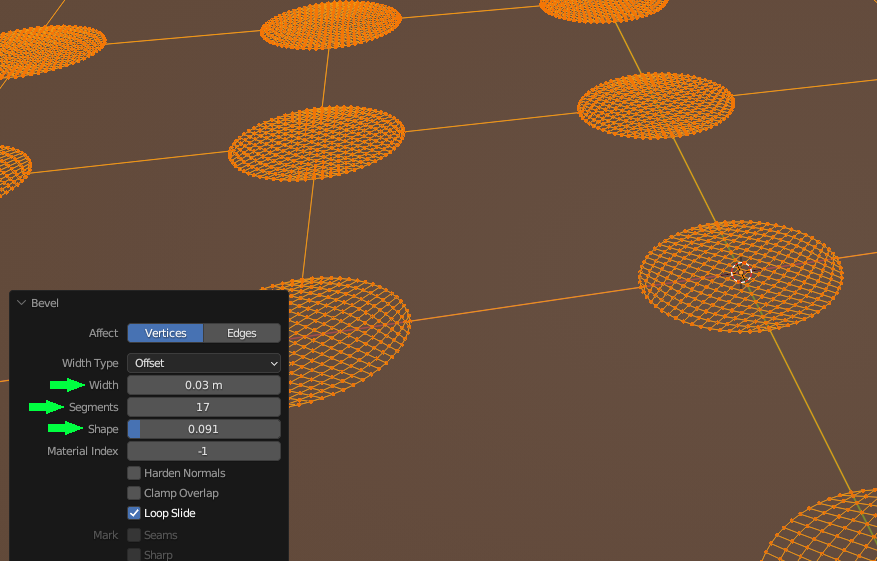

| Bevel individual verticies into circular shapes CTRL+Shift+B |

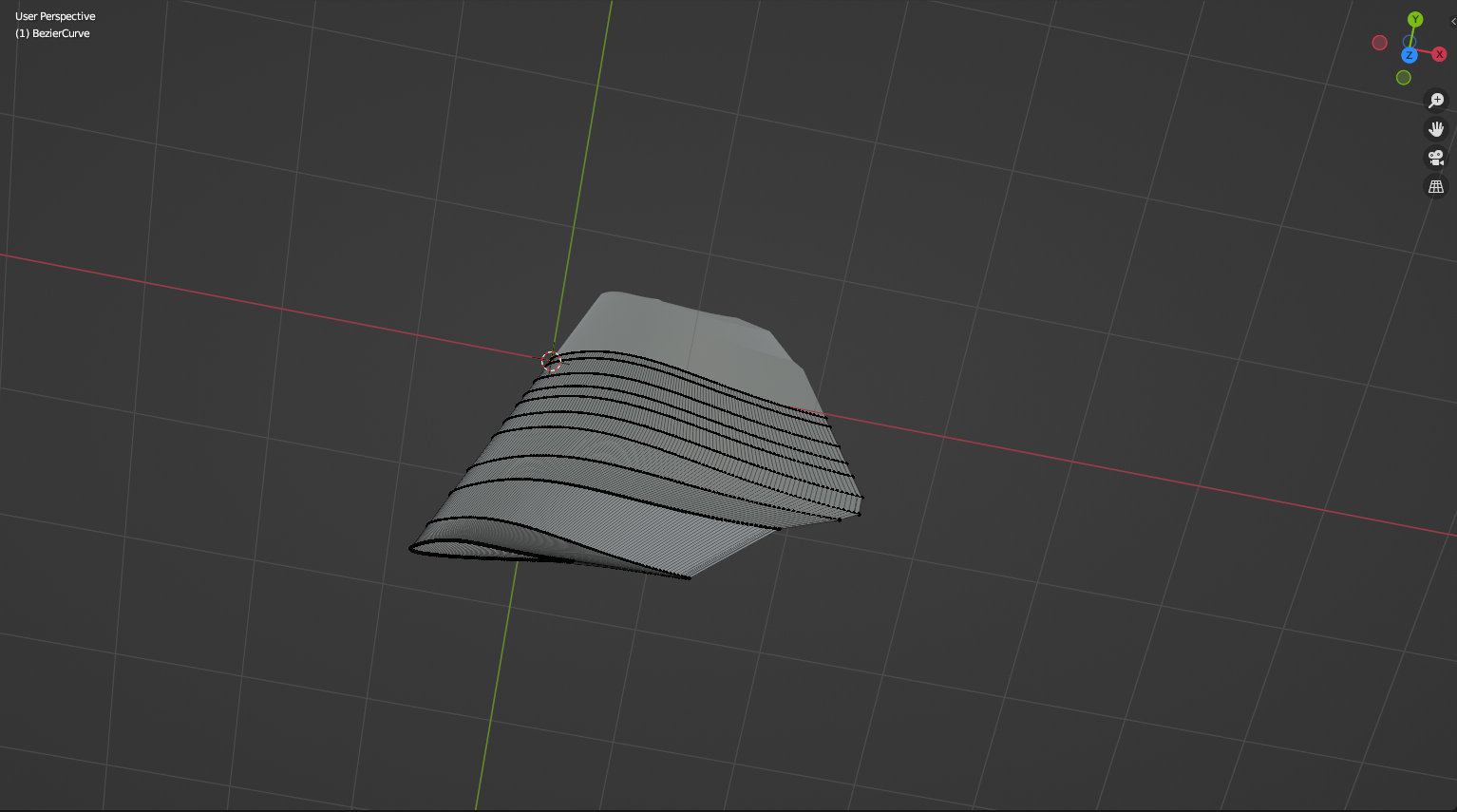

| BezierCurve to pipe via Object Data Properties |
| H to hide selection, Shift-H to hide all else of selection |
| to move sections of a 2-dimentional flat plane, extrude is used and not grab |

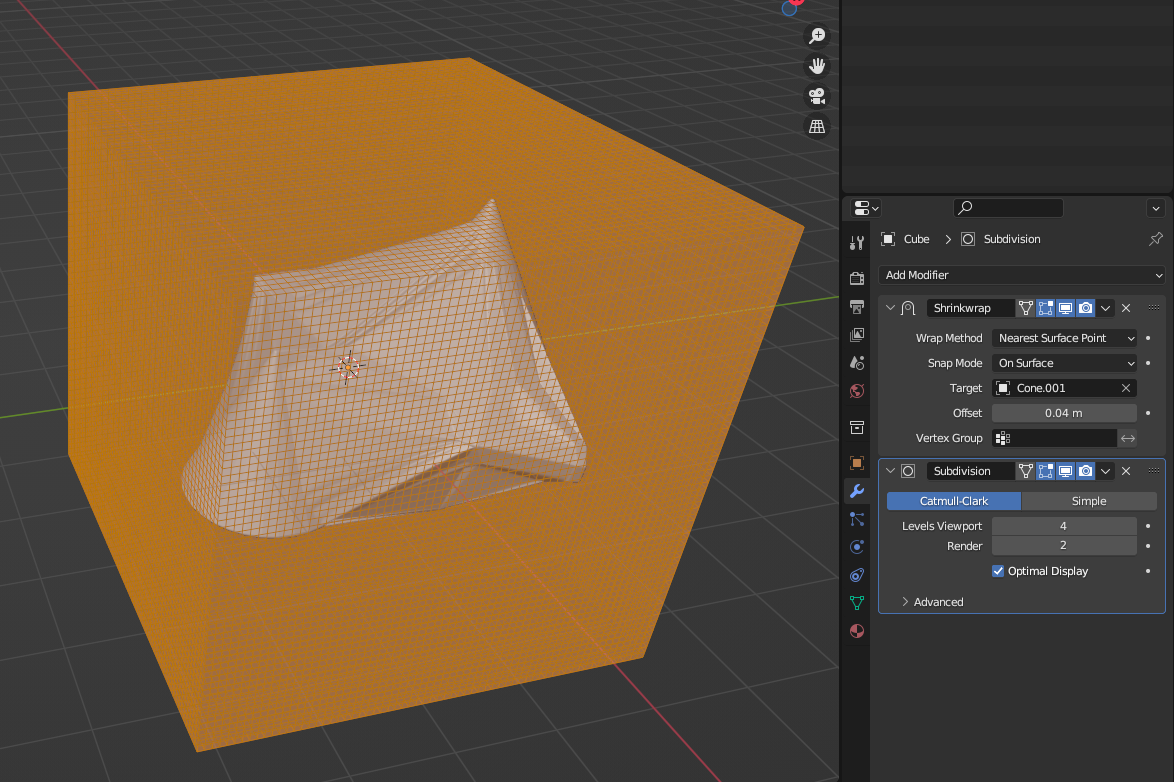

| Shrinkwarp a large shape/mesh/cube around a cluster of smaller 'joined' objects using Shrinkwrap |

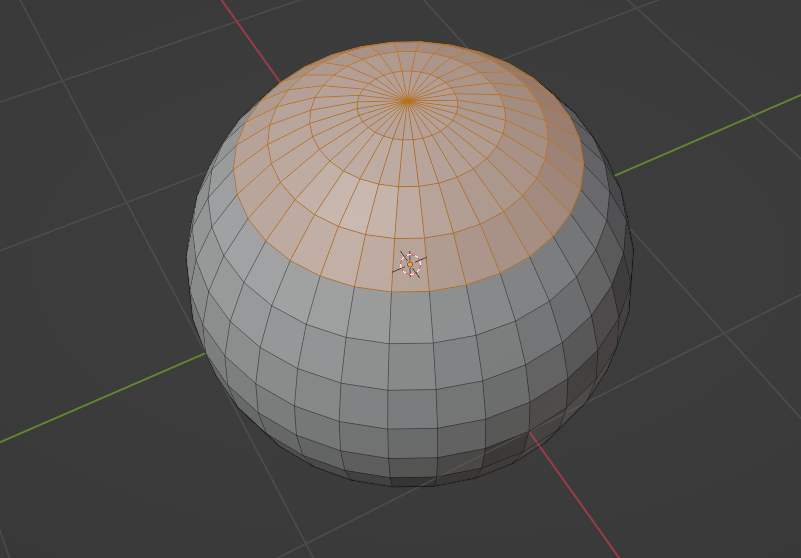

| Select larger or smaller perimeter rings with CTRL + (Num+/-). Regular CTRL +/- is good for zooming. |
| CTRL+A - Change vertex radius, not S |
| O to toggle proportional editing |
| select an object, hide other objects by clicking the "?" button, this works in object or edit mode, and is called "User Perspective (Local)" |
| To toggle wireframe hold z and mouse-left(and click) - or - mouse-right(and click). Same thing with CTRL+TAB for mode wheel. |
| Extrude Manifold - Alt+E+M - While extruding faces inwards, undesired artifact occurs, while target faces highlighted press alt+e and select extrude manifold. |
| Inset faces - doubletap i |
| circular array - switch to edit mode, alt e then s. short from BlenderVitals |
 |  |  |  |
 |  |  |  |
| Add image texture to object: Select object in object mode select 'material properties' (red sphere) on right for 'surface' select 'diffuse BSDF' click the color button circle in the expanded menu, click 'image texture' click 'open' open a new viewport window select object and enter edit mode click the editor type button in the upper left hand corner and select 'UV editor' in the standard 3d viewport window, select 'viewport shading' sphere (upper right) |
| Bevel Vertices |
| Geometry Nodes Allows you to create a custom modifier to manipulate geometry through a node interface. Attributes, math, color, geometry, point scattering & more! |
